Consider the following grammar along with translation rules.
S → S1 # T {S•val = S1•val * T•val}
S → T {S•val = T•val}
T → T1 % R {T•val = T1•val ÷ R•val}
T → R {T•val = R•val}
R → id {R•val = id•val}
Here # and % are operators and id is a token that represents an integer and id•val represents the corresponding integer value. The set of non-terminals is {S, T, R, P} and a subscripted non-terminal indicates an instance of the non-terminal.
Using this translation scheme, the computed value of S•val for root of the parse tree for the expression 20#10%5#8%2%2 is _____________.
Correct Answer:
80
Solution:

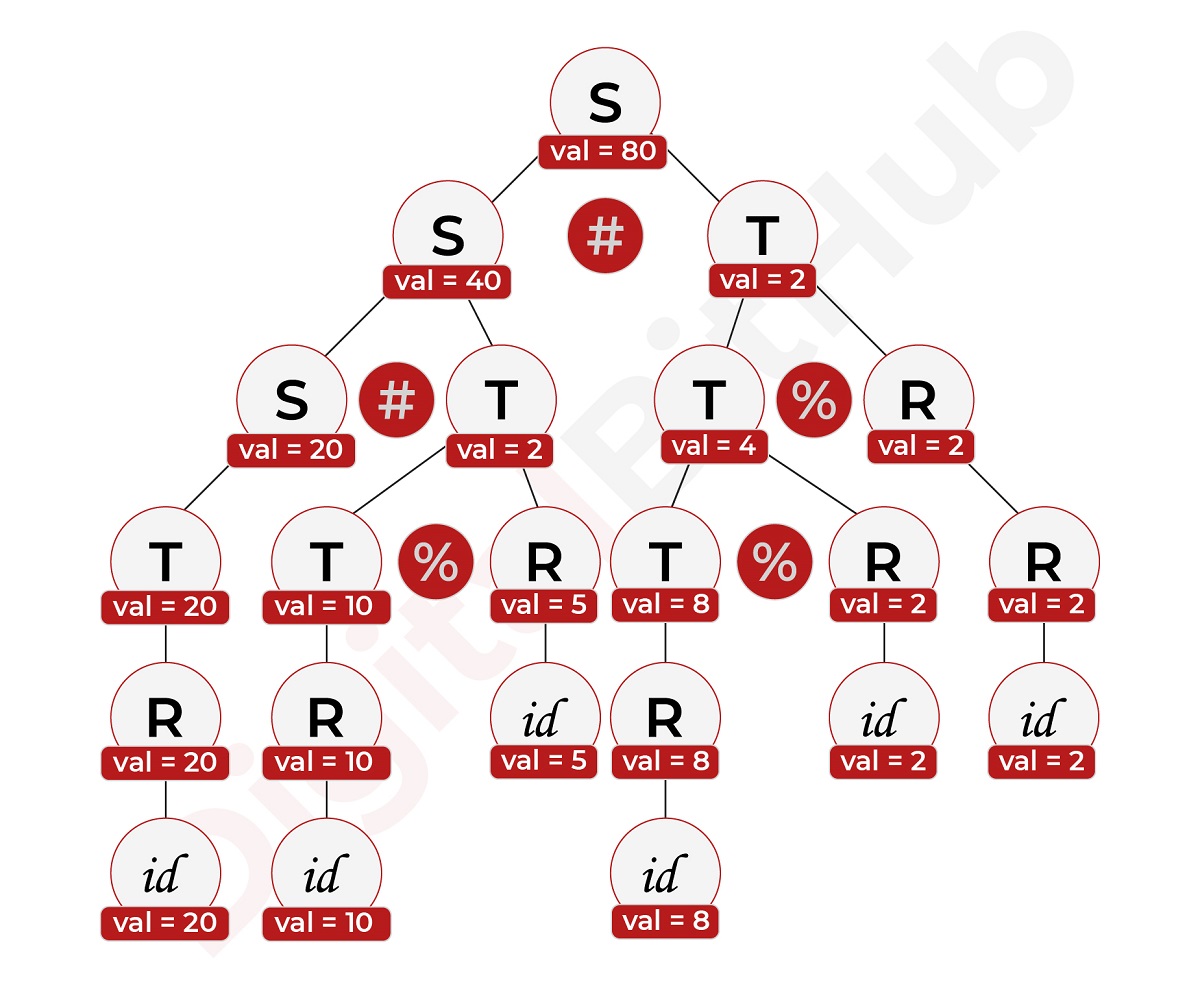

Parse tree for the 20#10%5#8%2%2
